Petroleum Fracturing Proppant (Resin Coated Fracturing Sand)

1. Product Introduction:

        This series of proppant is made of high-quality quartz sand and polymer materials as raw materials, and is refined through multiple processes using scientific technology. This product is especially suitable for fracturing measures for shale gas and tight oil and gas. The product can effectively reduce the embedding of proppant into shale gas and tight oil and gas reservoirs, and maintain the width of the supporting fracture; because the resin-coated quartz sand proppant has the characteristics of low density, high strength, and low friction, it can realize long-distance transportation and is suitable for Large-scale multi-stage fracturing of horizontal wells can effectively reduce fracturing costs; prevent the migration of fragments after part of the quartz sand is broken, and avoid damage to the diversion of supporting fractures.

2. Index of Proppant (resin coated sand):



Typical Technical Specifications

(Index)

PRS-30

PRS-40

PRS-50

PRS-100

Particle size

20/40mesh

30/50mesh

40/70mesh

70/140mesh

Roundness

≥0.70

≥0.70

≥0.70

≥0.70

Sphericity

≥0.72

≥0.72

≥0.72

≥0.72

Turbidity (NTU)

≤50

≤50

≤50

≤50

Acid Solubility (%)

≤3.0

≤4.0

≤4.0

≤5.0

Bulk Density (g/cm3)

≤1.55

≤1.55

≤1.55

≤1.55

Apparent Density (g/cm3)

≤2.55

≤2.55

≤2.55

≤2.55

Crush Chek/

69MPa/10000psi

≤3.0

≤2.5

≤2.0

≤2.0

86MPa/12500psi

≤5.0

≤4.5

≤4.0

≤4.0

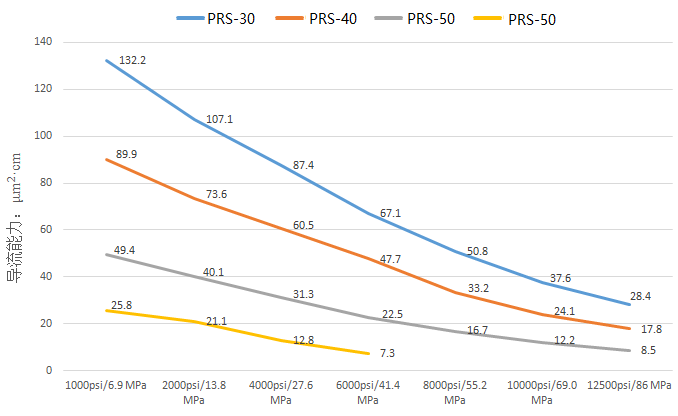

Flow conductivity (laying concentration 10kg/m2)

Test condition

Temperature/moisture

Test medium

Paved-sand content

21℃/75%

Distilled water

10 kg/m2



       Series

Closure pressure

PRS-30

(20/40mesh)

PRS-40

(30/50mesh)

PRS-50

(40/70mesh)

PRS-100

(70/140mesh)

1000psi/6.9 MPa

132.2

89.9

49.4

25.8

2000psi/13.8 MPa

107.1

73.6

40.1

21.1

4000psi/27.6 MPa

87.4

60.5

31.3

12.8

6000psi/41.4 MPa

67.1

47.7

22.5

7.3

8000psi/55.2 MPa

50.8

33.2

16.7

/

10000psi/69 MPa

37.6

24.1

12.2

/

12500psi/86 MPa

28.4

17.8

8.5

/

3.Package and Goods Photos:


      1250 KGS-1400 KGS per jumbo bag

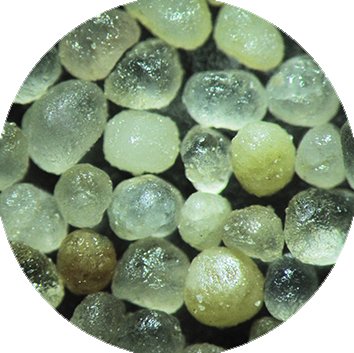

                (Microscope photo)
